سمپوزیوم بین المللی توت فرنگی

dada: complex for the 7th international strawberry symposium

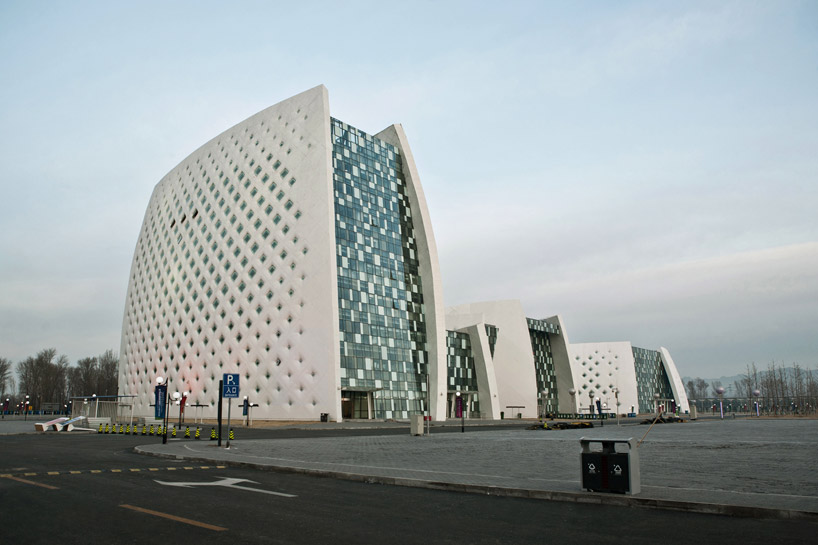

first image

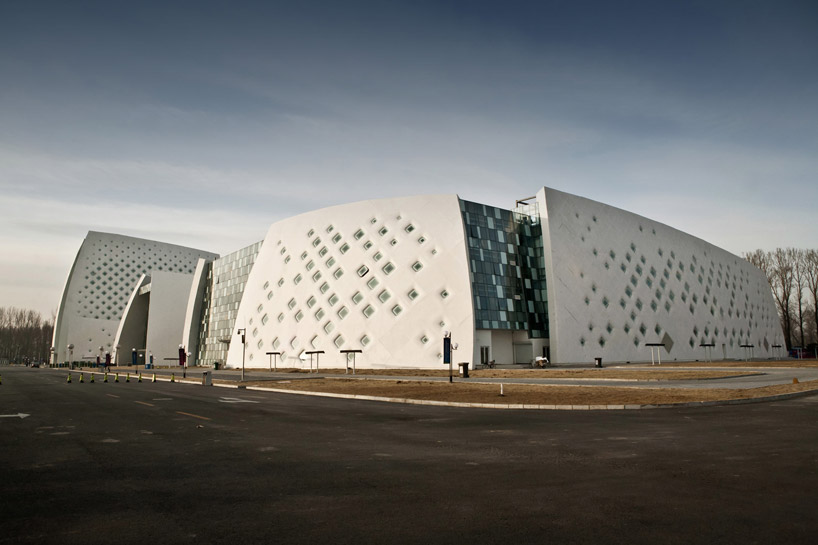

'7th international strawberry symposium exhibition center + hotel' by dada, beijing, china
all images courtesy of dada



new york and beijing-based practice dada have recently completed an exhibition center + hotel complex for
the 7th international strawberry symposium in the changping district of beijing, china. the 50,000 square meter site
contains a training center, convention center and factory which are positioned near an agricultural area renowned
for a tradition of strawberry cultivation and production. buildings will host events for horticultural scientists and producers
of strawberry products, offering a location to exchange ideas and collaborate.

white curvilinear shells enclose the spaces, varying in height and width depending on the scale of the internal programs.
the double curved walls are formed with SRC, a low-cost material comprised of composite concrete reinforced with fiberglass.
prefabricated panels were quick to install, completion construction within 8 months. evoking the textured exterior of the fruit,
the facades feature a diagrid of operable diamond windows to naturally ventilate the inside. inclined glass curtain walls shaded
with a ceramic frit pattern line each entry elevation.

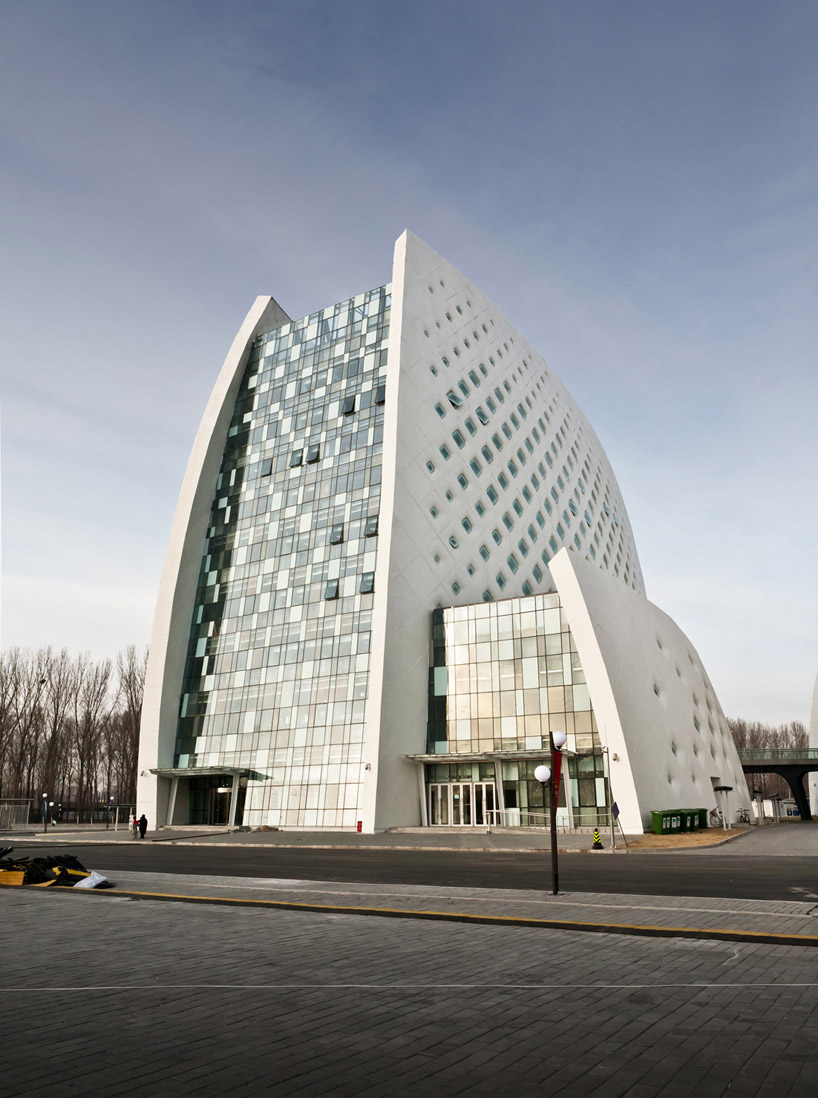

training center


a rainwater collection system encourages grey water recycling while geothermal heating and cooling support
sustainability goals. solar tubes control sunlight similar to fiber optics, introducing natural daylight as it is needed.
the selected material for the exterior has a long lifespan, projected to last for a minimum of 50 years.

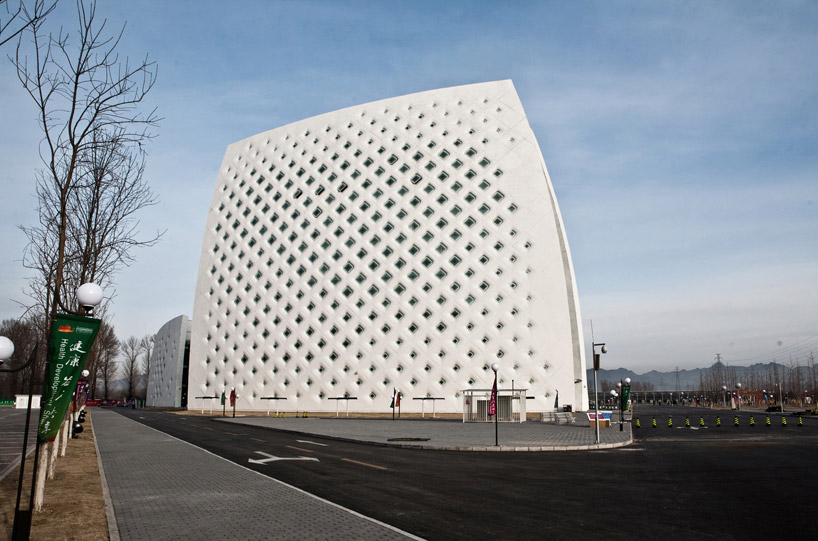

training center

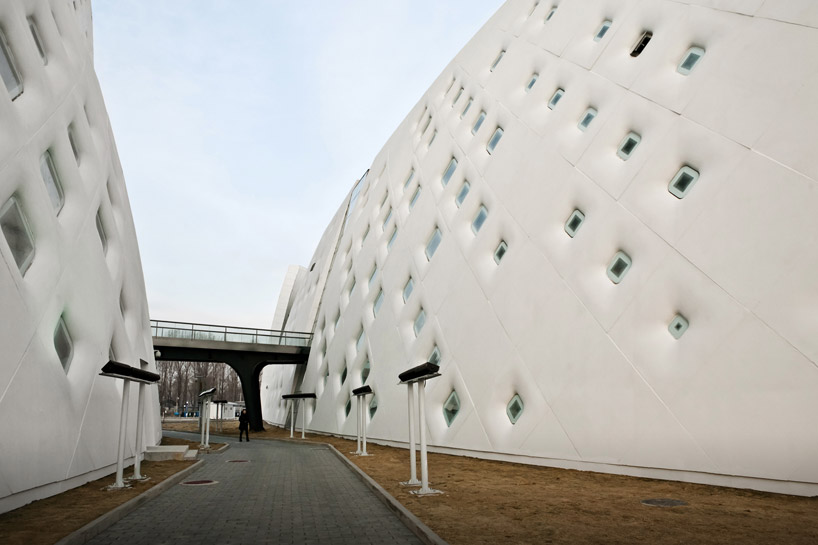

elevated pedestrian path connects the training center and convention center

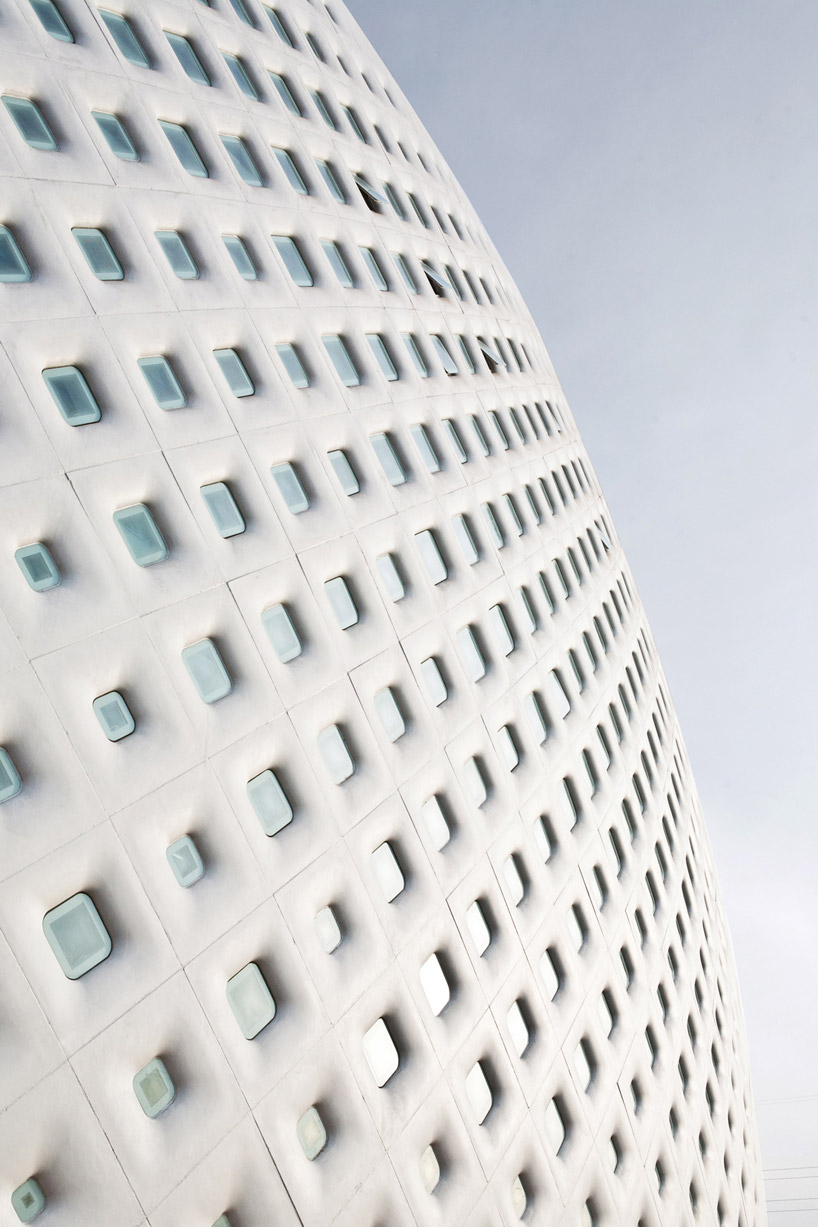

facade detail



factory

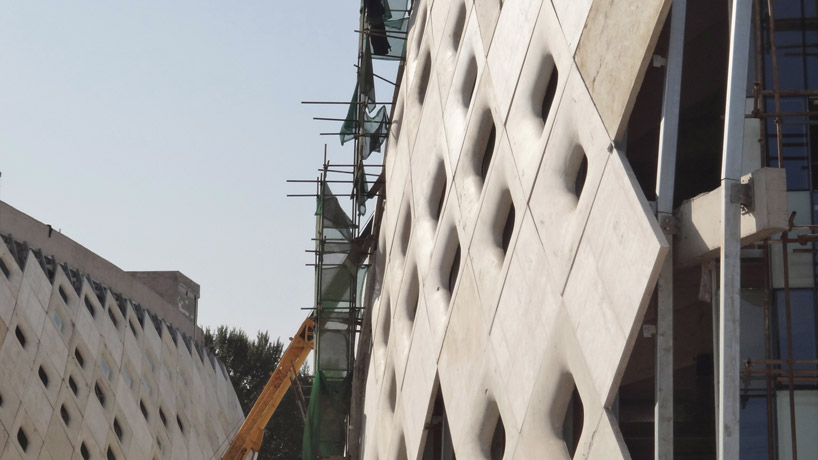

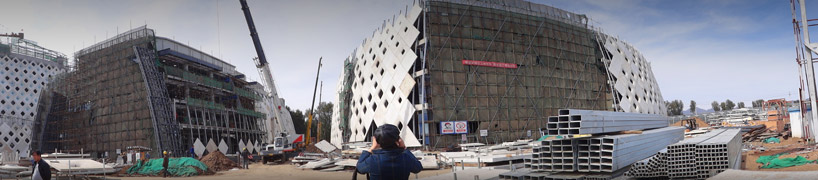

during construction



construction



construction



site plan

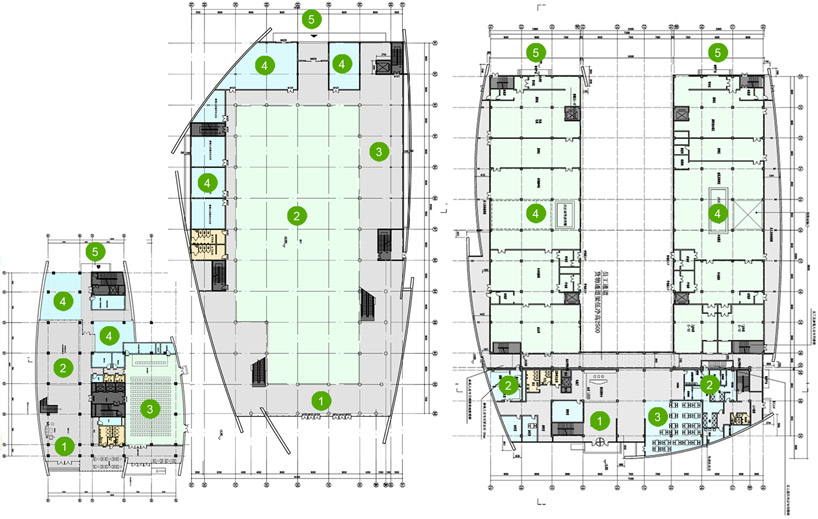

floor plan / level 0

(left) training center
1. entry
2. lobby
3. auditorium
4. office
5. loading dock

(center) convention center
1. entrance lobby
2. main exhibition hall
3. secondary exhibit areas
4. office
5. loading dock

(right) factory
1. entrance lobby
2. office
3. staff canteen
4. manufacturing area
5. loading dock




sustainability diagram
1. rooftop rainwater collection system for greywater use in toilets and landscape irigation
2. over 30% of windows are operable to provide natural ventilation in most interior spaces and cross ventilation in some areas
3. natural daylight use is maximised through solatubes which collect and direct sunlight from multiple angles via mirrored inner surfaces
4. geothermal wells provide high-efficiency winter heating and summer cooling
